LD 3 AKE Air Cargo Containers

LD 3 AKE Air Cargo Container

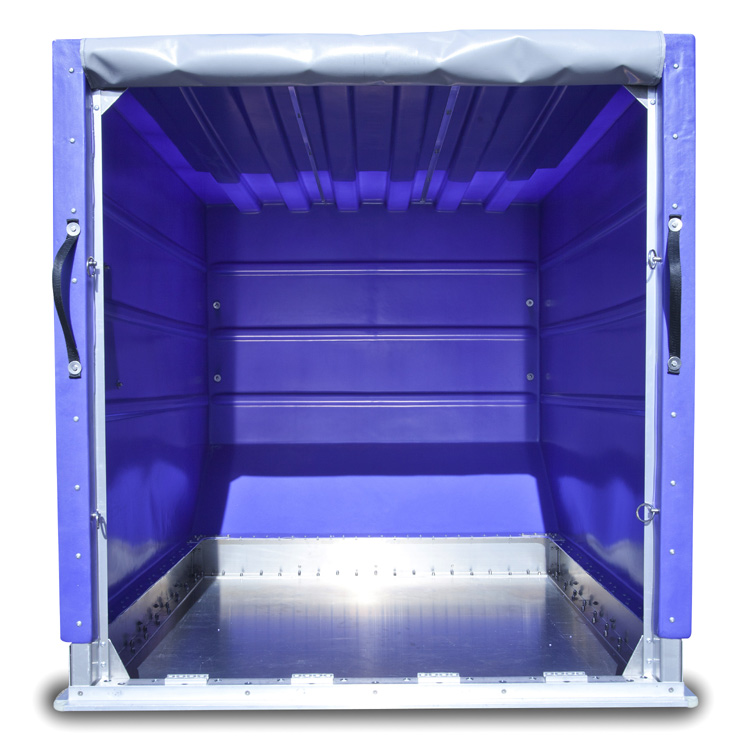

Granger Aerospace LD 3 AKE Air Cargo Container
LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKE
LD 3 AKE, LD 3, AKE Container, Granger Aerospace ld 3, Granger Plastics LD 3

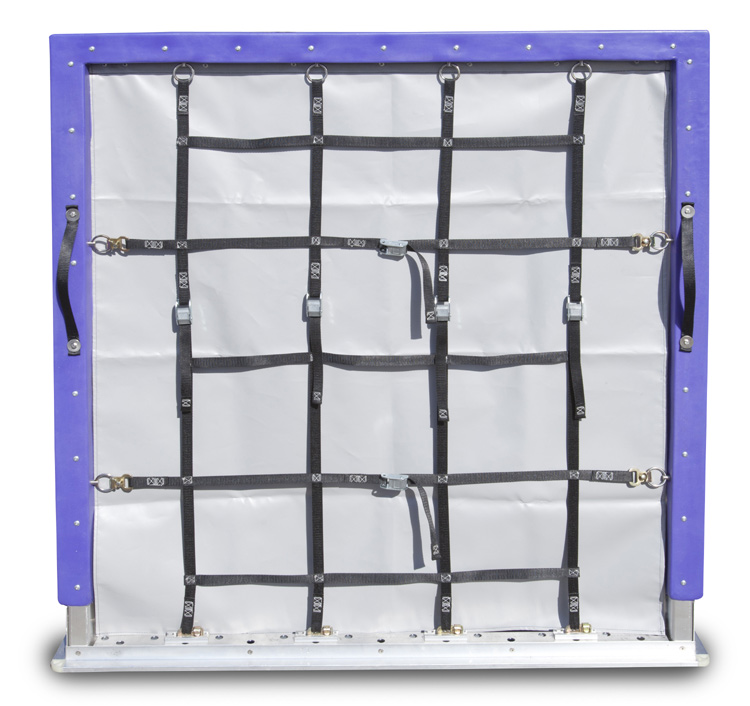

Granger Aerospace LD 3, LD 3, Granger LD 3 AKE

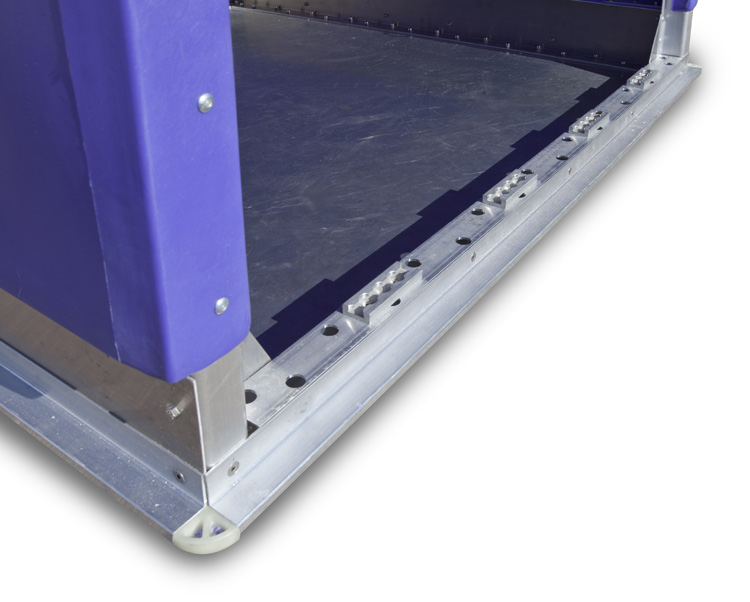

LD 3 AKE Base, LD 3 Air Cargo Container, LD 3, AKE Container, AKE Air Cargo, Granger Aerospace LD 3 Base

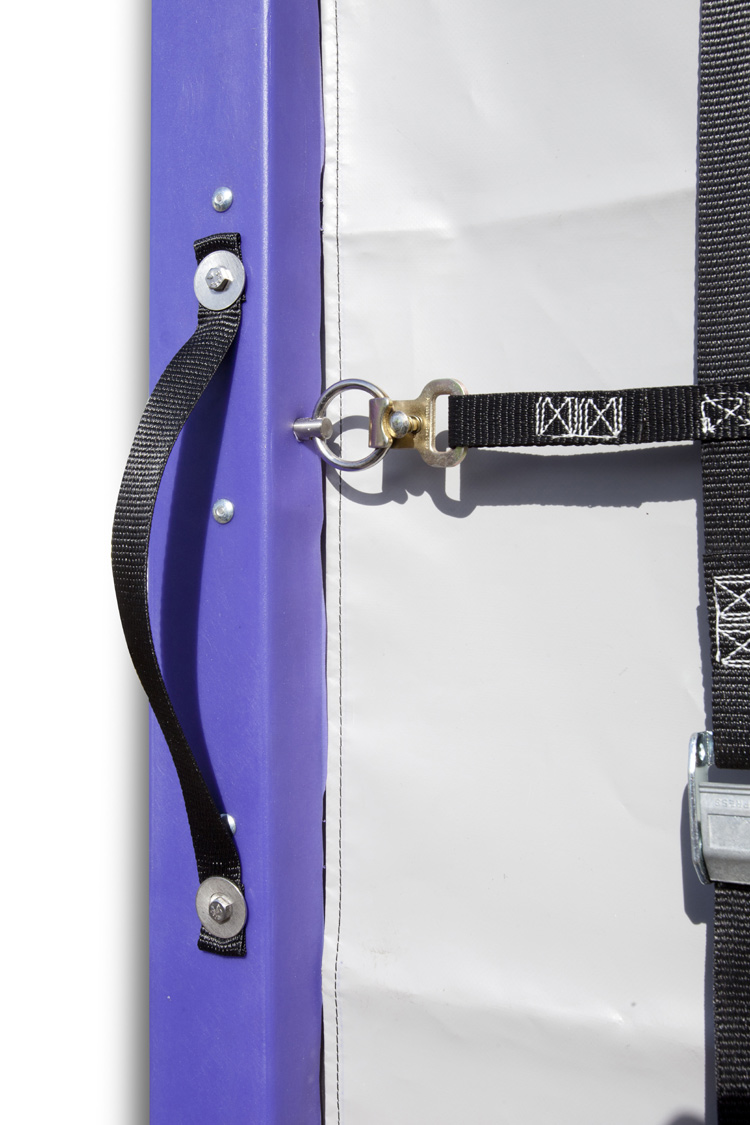

LD 3 AKE Handle, LD 3 Air Cargo Container Handle, LD 3 Air Cargo Container, Granger Aerospace LD 3
Click on any of the thumbnail images above to display the larger image in the LD 3 Air Cargo Container Gallery.



LD 3 AKE Technical Specifications

Technical Specifications
TSO   C90d
IATA   LD-3/AKE
SAE AS 36100 class   NAS 3610 (2K2C)
Granger Aerospace P/N   GA2-0103-2
Base size 1534 x 2438 mm 61.5 in x 60.4 in
Height 1625 mm 64.0 in
Roof length 2438 mm 79.0 in
Max. gross weight 2449 kg 3500 lb
Internal volume 5.7 cu m 150 cu ft
External volume 6.1 cu m 166 cu ft
Door opening 2298 x 1532 mm 53.13 in x 57.75 in
Tare weight from 84.8 kg 187 lb

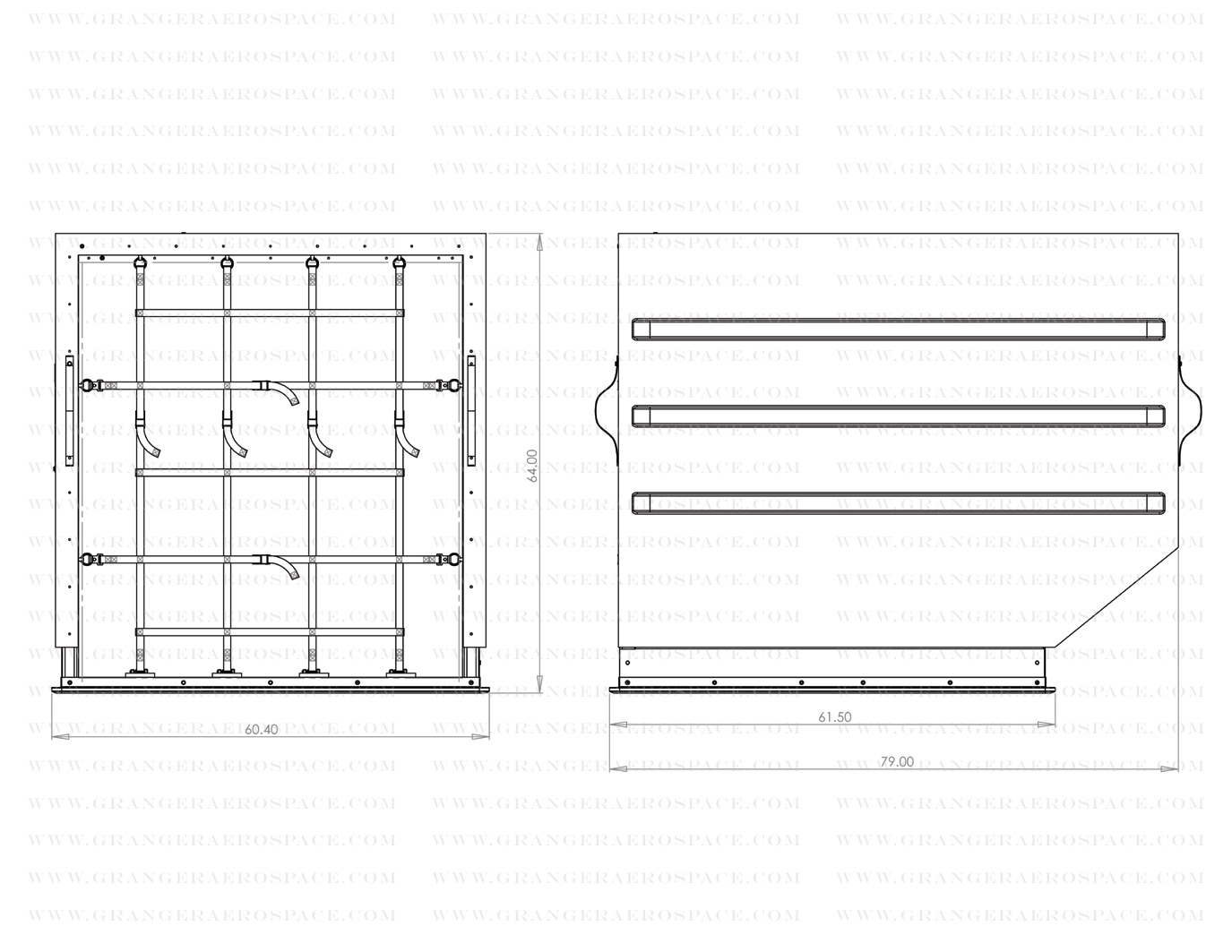

LD 3 AKE Dimensional Drawings

Click below to download LD 3 AKE Dimensional PDF
LD 3 Dimensions, LD 3 Air Cargo Container Dimensions, AKE dimensions

LD 3 AKE Ultimate Load Test

Watch the video above and see the Granger Plastics Air Cargo Containers successfully complete the FAA's Ultimate Load Testing. Watch as the LD 3 Air Cargo Container completes the loaded test!


LD 3 AKE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

  • LD 3 Air Cargo Container Links



    LD 3 AKE Information

    Click below to download LD 3 AKE Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKE Dimensions, AKN dimensions
