LD 3 AKN Air Cargo Containers

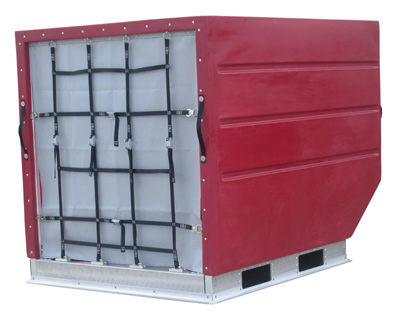

LD 3 AKN Air Cargo Container

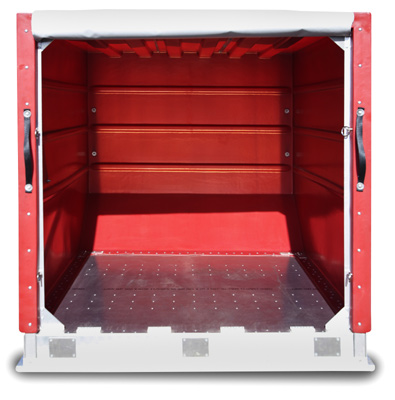

Granger Aerospace LD 3 AKN Air Cargo Container
LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKN
LD 3 AKN, LD 3, AKN Container, Granger Aerospace ld 3, Granger Plastics LD 3
Granger Aerospace LD 3, LD 3, Granger LD 3 AKN

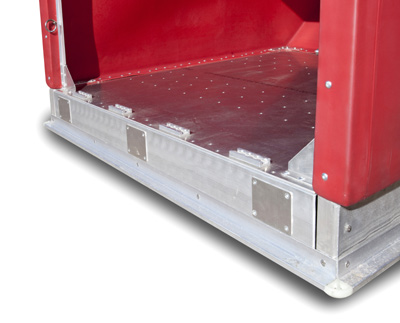

LD 3 AKE Base, LD 3 Air Cargo Container, LD 3, AKE Container, AKE Air Cargo, Granger Aerospace LD 3 Base

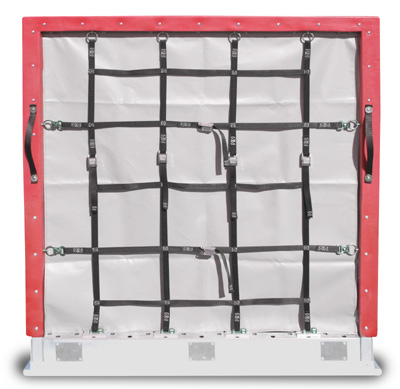

LD 3 AKN Handle, LD 3 Air Cargo Container Handle, LD 3 Air Cargo Container, Granger Aerospace LD 3
Click on any of the thumbnail images above to display the larger image in the LD 3 Air Cargo Container Gallery.



LD 3 AKN Technical Specifications

Technical Specifications
TSO   C90d
IATA   LD-3/AKN
SAE AS 36100 class   NAS 3610 (2K2C)
Granger Aerospace P/N   GA2-0103-3
Base size 1534 x 2438 mm 61.5 in x 60.4 in
Height 1625 mm 64.0 in
Roof length 2438 mm 79.0 in
Max. gross weight 2449 kg 3500 lb
Internal volume 3.5 cu m 125 cu ft
External volume 4.7 cu m 166 cu ft
Door opening 2298 x 1532 mm 53.13 in x 57.75 in
Tare weight from 84.8 kg 262 lbs.

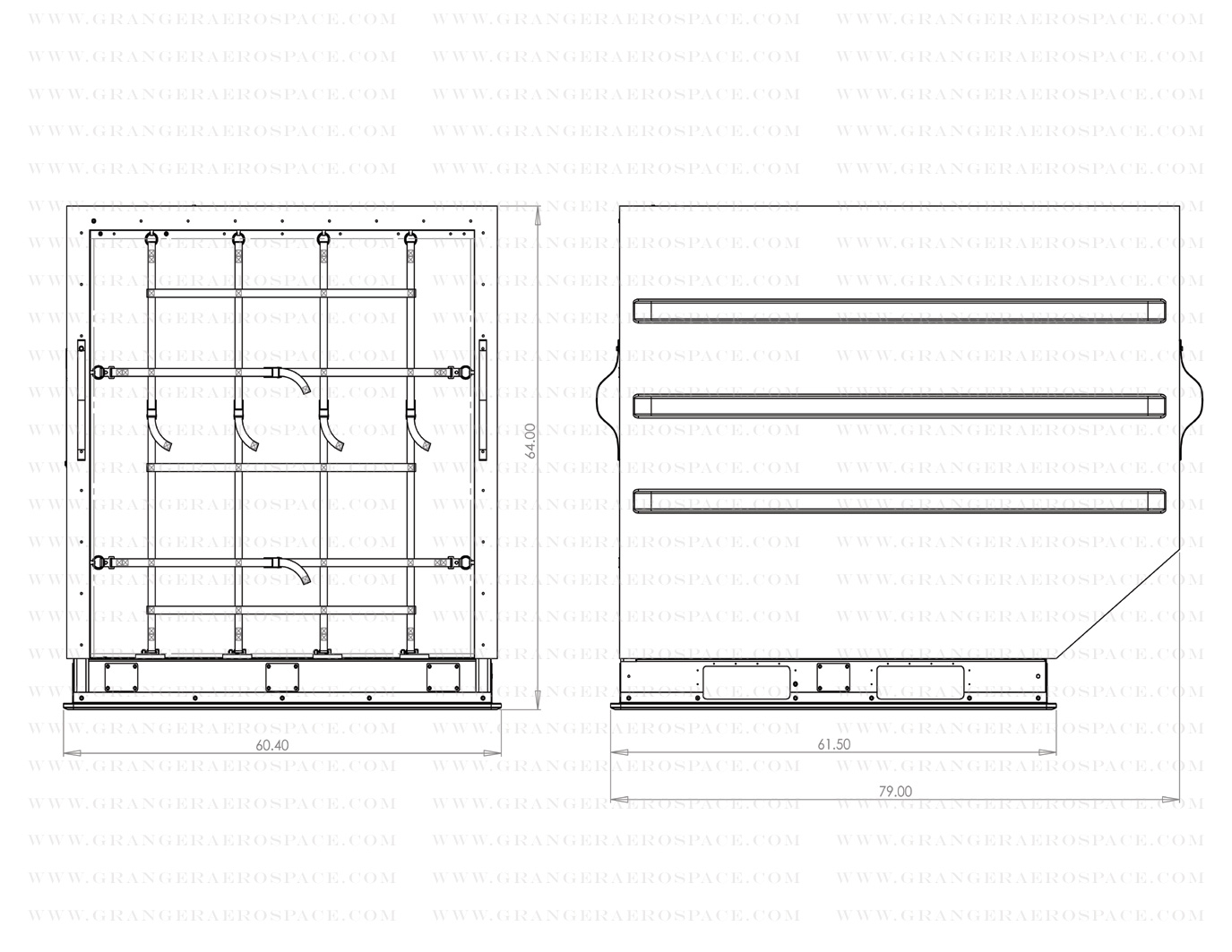

LD 3 AKN Dimensional Drawings

Click below to download LD 3 AKN Dimensional PDF
LD 3 Dimensions, LD 3 Air Cargo Container Dimensions, AKN dimensions

LD 3 AKN Ultimate Load Test

See the forkliftable LD 3 AKN air cargo container successfully complete the FAA's Ultimate Load Testing in the video above!

LD 3 AKN Side Load Test- 8 Days


LD 3 AKN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

  • LD 3 Air Cargo Container Links



    LD 3 AKN Information

    Click below to download LD 3 AKE Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKE Dimensions, AKN dimensions
